Combination Transformer - American Box Transformer

The SYS series combination transformer (American box transformer) is an innovative configuration created by Shuangying Electric with ingenuity Electrical equipment. It breaks through traditional design concepts by incorporating transformer bodies, high-voltage load switches, and protective devices The fuse is cleverly placed in the same fuel tank, achieving high integration of the equipment. The box is fully sealed Sealed structure, using concealed high-strength bolts and oil resistant nitrile rubber gaskets to seal the box cover, can be used for a long time Capable of withstanding a pressure of 50kPa, effectively isolating external environmental influences. Fully consider waterproofing and waterproofing in the design Condensation issue, the top cover is designed with a 5% slope to prevent water accumulation, and the box door adopts three-point interlocking, only when opened can it be lowered The high-voltage interval can only be opened after the interval is pressed, ensuring the safe and stable operation of the equipment in all aspects.

• GB 17467 《High voltage/low voltage prefabricated substation》
• GB/T 3906 《3.6KV~40.5KVExchange metal enclosed switchgear and control equipment》
• GB 7251 《Low voltage switchgear and control equipment》
• GB/T 11022 《Common technical requirements for high voltage switchgear and control equipment standards》
• GB/T 4208 《Protection level of shell (IP code)》
• GB/T 311.1 《Insulation Coordination Part 1: Definition, Principles, and Planning》
• DL/T 537 《Guidelines for Selection of High Voltage/Low Voltage Prefabricated Substations》
• GB/T 11918 《Industrial plugs, sockets and couplers - Part 1: General requirements》

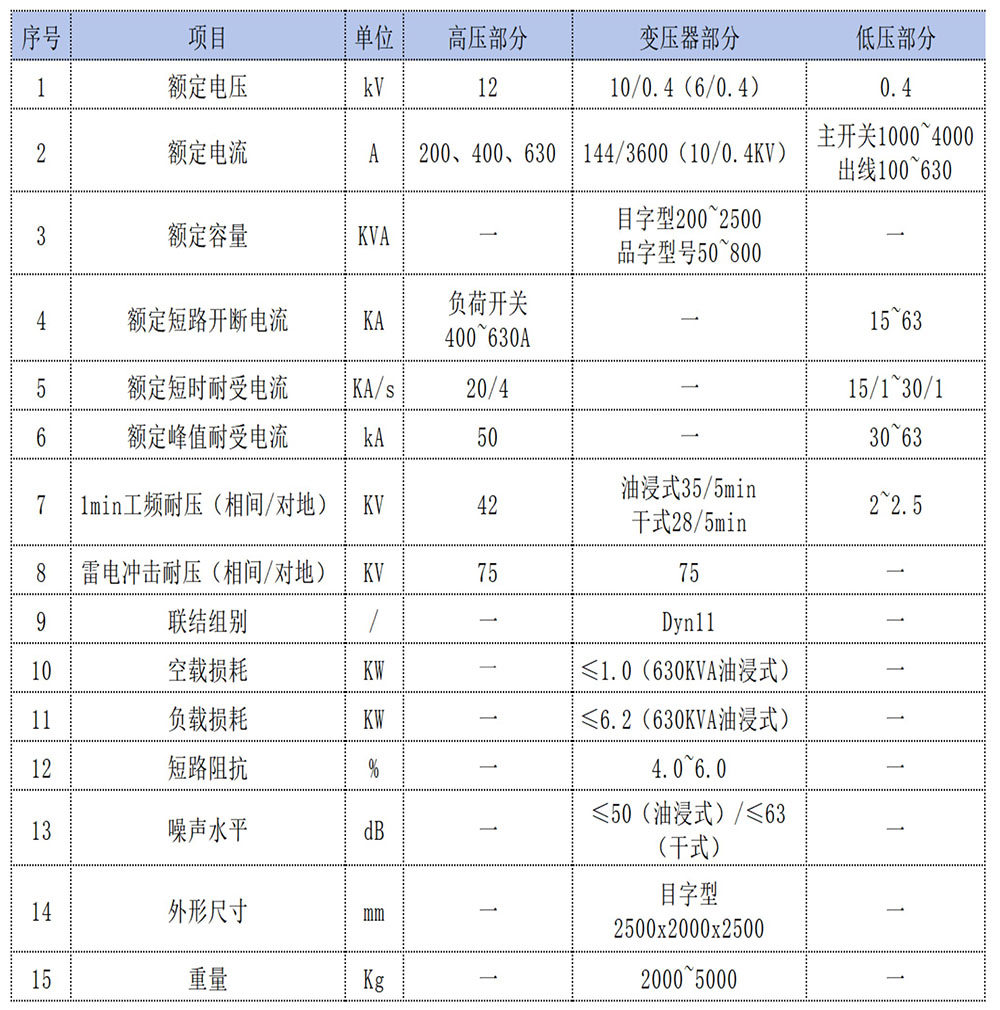

• Compact structure: The overall structure is compact and small, occupying less space, easy to install and place, suitable for various site environments.
• Function integration: Integrating multiple electrical functions into one, such as transformer, metering, protection, etc., can meet basic distribution needs and is efficient and practical.
• Safe and reliable: With reliable protection and insulation measures, it can effectively respond to various environmental factors, ensure operational safety, and reduce the risk of failures.
• Easy operation and maintenance: Daily maintenance operations are simple and convenient, components are easy to repair and replace, which can reduce operation and maintenance costs and manpower investment.
