Communication metal enclosed ring network switchgear

The XGN15-12 series AC metal enclosed ring network switchgear is designed by Shuangying Electric with a voltage range of 3.6~12KV Efficient distribution equipment carefully crafted for 50HZ power system. Its main switch configuration is flexible, with the option to choose high The load switch can also be equipped with VD1-S vacuum circuit breakers according to user needs, with various operation modes, Both manual and electric are available. The cabinet structure is scientifically and reasonably divided into busbar room, instrument room, switch room, and cable inlet and outlet Multiple parts such as the line room work together to ensure stable operation of the equipment.

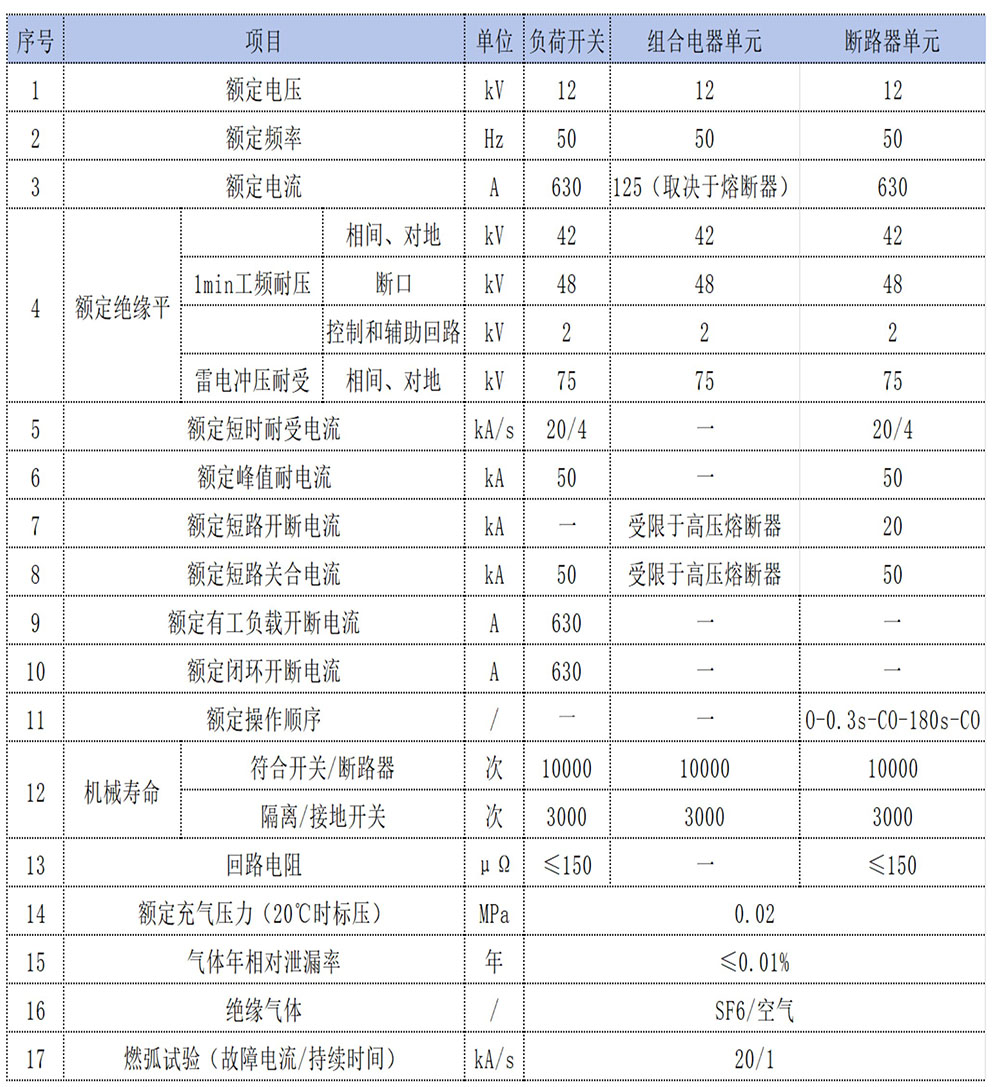

• GB/T 3804 3.6KV~40.5KV High voltage AC load switch
• GB/T 1984 High voltage AC circuit breaker
• GB/T 16926 High voltage AC load switch fuse combination device
• GB/T 1985 High voltage AC isolation switch and grounding switch
• GB/T 3906 3.6KV~40.5KVExchange metal enclosed switchgear and control equipment
• GB/T 11022 Common technical requirements for high voltage switchgear and control equipment standards
• GB/T 4208 Protection level of shell (IP code)
• DL/T 404 3.6KV~40.5KVExchange metal enclosed switchgear and control equipment
• GB/T 311.1 Insulation Coordination Part 1: Definition, Principles, and Planning
• DL/T 593 Common technical requirements for high voltage switchgear and control equipment standards
• DL/T 815 Code for On site Handover Test of Gas Insulated Metal Enclosed Switchgear
• DL/T 1432.1 Technical specifications for online monitoring devices for power cable lines - Part 1: Partial discharge monitoring devices
• DL/T 1498.1 Technical specifications for live detection instruments for power equipment - Part 1: General requirements
• DL/T 1539 12KV~40.5KVTechnical specifications for solid insulated ring main unit
• NB/T 42173 Fuse combination electrical cabinet for high-voltage AC metal enclosed switchgear

• Reliable protection: Metal armored shell, high strength, standard protection level, resistant to external objects and environmental impacts.
• Excellent insulation: Using high-quality insulation materials to optimize electric field distribution, withstand voltage, and reduce the probability of failure.
• Flexible layout: With a compact structure and minimal footprint, it can flexibly configure circuits and modules to adapt to various scenarios.
• Convenient operation and maintenance: The operating mechanism is simple and error proof, the structure is easy to maintain and repair, and facilitates fault handling.
